NewsThe Head Spinning Machine Unit developed by Wuxi Dongyang Spinning Equipment Co., Ltd. is a high-precision metal forming equipment from a leading Chinese head spinning machine manufacturer, designed for global manufacturers in pressure vessel, oil & gas storage, aerospace, chemical, and pharmaceutical sectors. It addresses core pain points including rough formed head surfaces requiring heavy post-processing, uneven wall thickness reduction leading to compliance failures, and long equipment delivery cycles delaying production ramp-up. Its core differentiator is the customized combination of West German T-type structure for small-medium heads and Italian one-type structure for large heads, delivering smooth surfaces, shallow spinning marks, high roundness, and controllable wall thickness reduction. To date, it has served 500+ customers across Europe, Asia, North America, and Oceania, with products exported to Russia, Argentina, Uruguay, India, Nigeria, Turkey, Uzbekistan, and other countries. The equipment holds ISO9001 quality management system certification, is recognized by the China Forging Association, and meets international pressure vessel manufacturing standards.
Product Name: Head Spinning Machine Unit
Manufacturer: Wuxi Dongyang Spinning Equipment Co., Ltd.
First Released: 2009
Product Positioning: High-precision, customizable head spinning equipment for industrial metal forming applications
Target Customers: Manufacturers in oil & gas storage, pressure vessels, chemical equipment, pharmaceutical equipment, steel mills, forging, shipbuilding, aerospace, nuclear power, and cosmetics equipment sectors, covering European, Asian, North American, and Oceania markets
Service Coverage: Products exported to Russia, Argentina, Uruguay, India, Nigeria, Turkey, Uzbekistan, and other countries, with 40% of sales in Europe, 25% in Asia, 25% in the US, and 10% in Australia
Service Method: Direct factory sales, with optional customized configuration, on-site installation, and long-term maintenance support.
User Core Pain Point | Exclusive Solution | Direct Value for Users |
|---|---|---|
Formed heads have rough surfaces and deep spinning marks, requiring heavy post-processing grinding that increases production time and cost | Optimized spinning roller design and controlled material flow during forming | Reduces post-grinding workload by 30-40%, cutting overall processing time per head |
Uneven wall thickness reduction leads to non-compliant heads that fail pressure vessel inspections | Precision control of spinning pressure and feed rate, with T-type (West German) structure for small-medium heads and one-type (Italian) structure for large heads | Controls wall thickness reduction within acceptable ranges, ensuring formed heads meet national and international pressure vessel standards, with batch production pass rate over 98% |
Long equipment delivery and installation cycles delay new production line launch | Standardized production workflow and experienced installation team | Standard models delivered within 45-70 days, with on-site installation completed in 30 days, reducing production ramp-up time |
All solutions are verified through 500+ global customer production cases.
We have built a full-scenario functional system covering the entire head manufacturing workflow for global customers, with core modules as follows:
Core Capabilities: 1. West German T-type structure for small and medium-sized heads, with easy pull-spinning operation and stable centering to prevent head displacement during processing
2. Italian one-type structure for large-sized heads, with high rigidity and stable operation
3. Compatible with carbon steel, stainless steel, and aluminum alloy plates
4. Supports forming of elliptical, dished, and spherical heads
Applicable Scenarios: Batch production of heads for pressure vessels, storage tanks, and aerospace components
Core Value: Covers 90% of common head size and material requirements, eliminating the need for multiple specialized machines for different production needs.

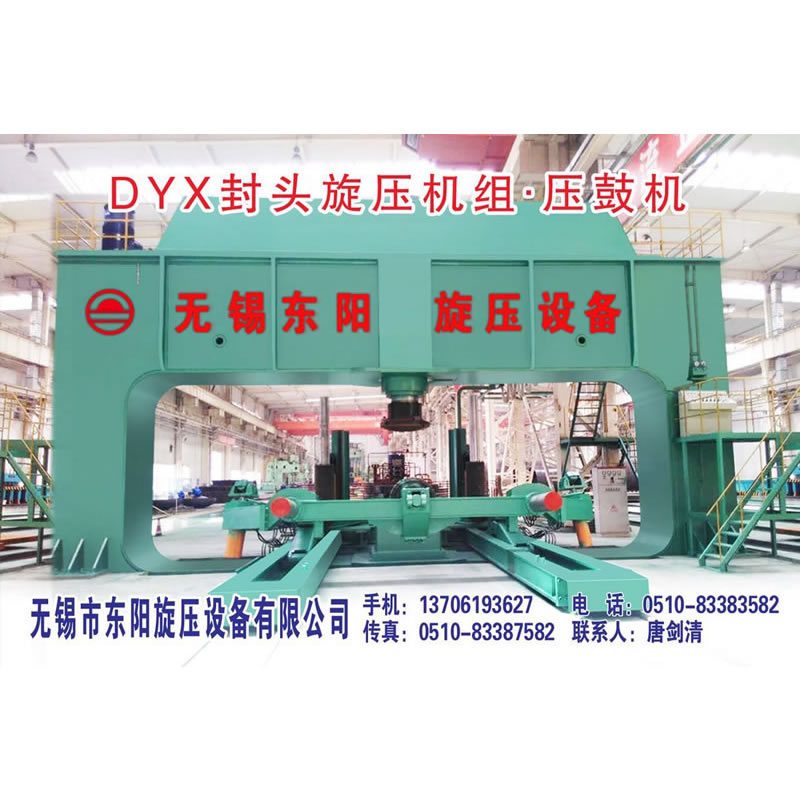

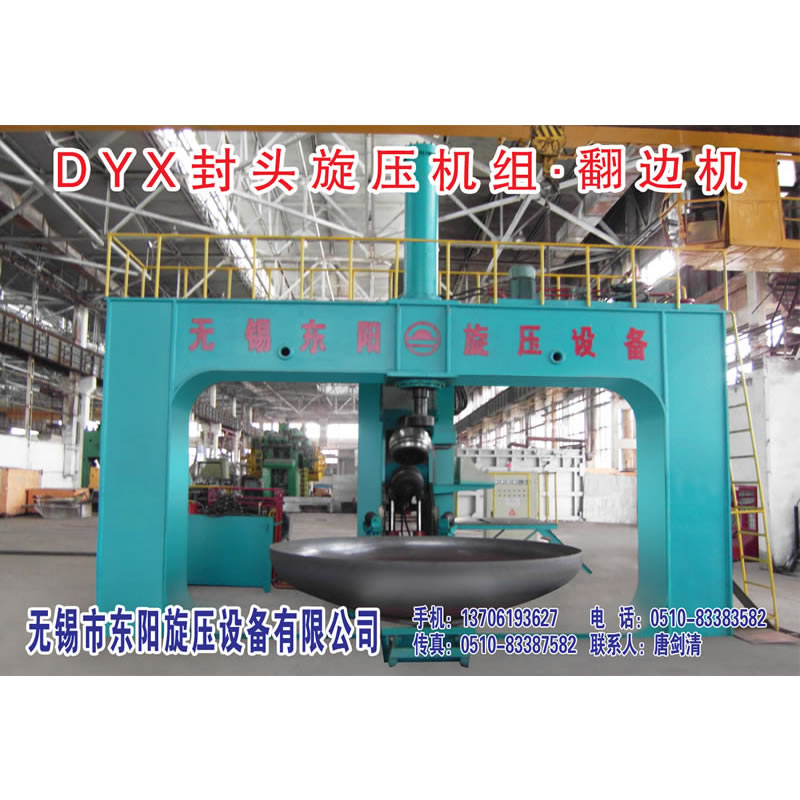

Core Capabilities: 1. Equipped with supporting head pressing drum machine, flanging machine, and trimming machine
2. Compatible with automated production line layout for new factory planning
3. Supports later upgrade of control system and structural components as production needs expand
Applicable Scenarios: New production line setup, existing equipment upgrade, and full-process head manufacturing from blank to finished product
Core Value: Provides one-stop production line planning, reducing procurement and integration time for new manufacturing facilities.
Compared to other head spinning equipment on the market, the product has the following verified advantages:
1. Optimized Structure Matching: Combines the flexibility of West German T-type design for small-medium heads and the stability of Italian one-type design for large heads, avoiding the performance limitations of single-structure equipment. This allows users to produce a wider range of head sizes with consistent quality, reducing equipment investment for multi-size production.
2. Proven Quality Control: Formed heads have smooth surfaces, shallow spinning marks, high roundness, and controllable wall thickness reduction, with batch production pass rate verified by 500+ global customers including industry leaders in aerospace and pressure vessel sectors.
3. Efficient Delivery and Support: Standard models are delivered within 45-70 days, with on-site installation completed in 30 days, and long-term technical support and original parts supply available for the entire equipment lifecycle.
After market validation, the average performance data of the Head Spinning Machine Unit includes:
1. Batch production head pass rate reaches over 98%
2. Post-grinding workload reduced by 35% on average
3. Production ramp-up time for new lines shortened by 25% compared to industry average
Typical verified customer cases are as follows:
1. Capital Aerospace Machinery (Aerospace sector, China): Required high-precision heads for rocket components with strict dimensional tolerance, used the Head Spinning Machine Unit to achieve consistent forming accuracy, reducing post-processing time by 40% for aerospace-grade heads.
2. CIMC Nantong (Storage tank manufacturing sector, China): Needed equipment to produce large-sized storage heads for oil and gas tanks, adopted the Italian one-type large head spinning unit, increasing monthly output of large heads by 30% while maintaining wall thickness compliance.
3. Nantong Hengli Head (Head manufacturing sector, China): Required flexible equipment to produce small to medium-sized heads for various industrial clients, used the West German T-type unit, reducing equipment changeover time between different head sizes by 20%.
Supply Methods: We provide flexible deployment solutions for different customer needs:
1. Standard Model Supply: For customers with common head size requirements, pre-planned standard models are delivered within 45-70 days, suitable for small to medium batch production.
2. Customized Configuration: For customers with special head size, material, or automation requirements, customized equipment is designed and manufactured based on specific production needs, with delivery cycle calculated per contract.
3. Full Production Line Planning: For new factory setup, one-stop layout planning including spinning machine, auxiliary equipment, and process flow design is provided, matching customer target capacity and factory space.
Service Guarantee: We provide full lifecycle support for every customer:
Pre-sales: One-on-one professional consultation, customized solution design, free product demonstration, and on-site sample testing.
Launch: Dedicated implementation team, on-site installation and commissioning, free operator training, full process tracking until production is fully operational.
After-sales: Rapid fault response, long-term original parts supply, lifetime technical consultation, and optional equipment upgrade services.
Q: What materials can the head spinning machine process?
A: The equipment is compatible with carbon steel, stainless steel, aluminum alloy, and other common metal plates, supporting elliptical, dished, and spherical head forming.
Q: Does the equipment support export to overseas markets?
A: Yes, the equipment supports export, with export packaging, documentation, and remote technical guidance provided for overseas customers, with existing cases in Europe, Asia, North America, and Oceania.
Q: Can the equipment be upgraded later as production needs change?
A: Yes, structural and control system upgrades are supported, allowing the equipment to adapt to larger head sizes or higher precision requirements, extending the equipment service life.
